QBK1212

Ondrives Precision Gears and Gearboxes Part number QBK1212

QBK1212

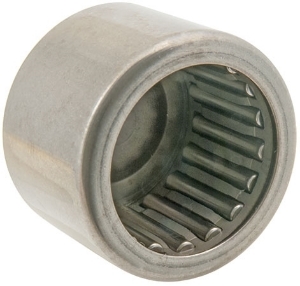

Closed End Needle Roller Bearing to DIN 618 Part 1. 12mm Bore.
Ondrives Precision Gears and Gearboxes Part number QBK1212 Ondrives Precision Gears and Gearboxes Part number QBK1212

Product specifications

Bore Diameter [d]12
Diameter [A]18
Dimension [W] +0/-0.212
Dimension [C] Max.2.7
Depth of Bore [T]9.3
Dynamic Load Rating [N]6600
Static Load Rating [N]7300
Limiting Speed - Grease [rpm]13000
Limiting Speed - Oil [rpm]20000
Mass (g)10

Product specifications

Bore Diameter [d]12
Diameter [A]18
Dimension [W] +0/-0.212
Dimension [C] Max.2.7
Depth of Bore [T]9.3
Dynamic Load Rating [N]6600
Static Load Rating [N]7300
Limiting Speed - Grease [rpm]13000
Limiting Speed - Oil [rpm]20000
Mass (g)10
