QBK0810

Ondrives Precision Gears and Gearboxes Part number QBK0810

QBK0810

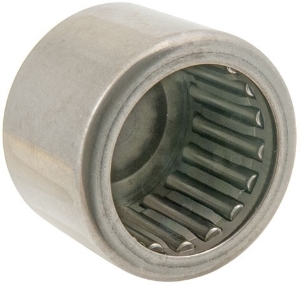

Closed End Needle Roller Bearing to DIN 618 Part 1. 8mm Bore.
Ondrives Precision Gears and Gearboxes Part number QBK0810 Ondrives Precision Gears and Gearboxes Part number QBK0810

Product specifications

Bore Diameter [d]8
Diameter [A]12
Dimension [W] +0/-0.210
Dimension [C] Max.1.6
Depth of Bore [T]8.4
Dynamic Load Rating [N]3850
Static Load Rating [N]3950
Limiting Speed - Grease [rpm]20000
Limiting Speed - Oil [rpm]30000
Mass (g)3.4

Product specifications

Bore Diameter [d]8
Diameter [A]12
Dimension [W] +0/-0.210
Dimension [C] Max.1.6
Depth of Bore [T]8.4
Dynamic Load Rating [N]3850
Static Load Rating [N]3950
Limiting Speed - Grease [rpm]20000
Limiting Speed - Oil [rpm]30000
Mass (g)3.4
