QBK0609

Ondrives Precision Gears and Gearboxes Part number QBK0609

QBK0609

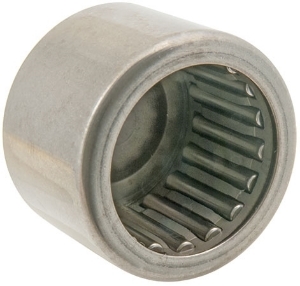

Closed End Needle Roller Bearing to DIN 618 Part 1. 6mm Bore.
Ondrives Precision Gears and Gearboxes Part number QBK0609 Ondrives Precision Gears and Gearboxes Part number QBK0609

Product specifications

Bore Diameter [d]6
Diameter [A]10
Dimension [W] +0/-0.29
Dimension [C] Max.1.6
Depth of Bore [T]7.4
Dynamic Load Rating [N]2660
Static Load Rating [N]2280
Limiting Speed - Grease [rpm]25000
Limiting Speed - Oil [rpm]37000
Mass (g)2.4

Product specifications

Bore Diameter [d]6
Diameter [A]10
Dimension [W] +0/-0.29
Dimension [C] Max.1.6
Depth of Bore [T]7.4
Dynamic Load Rating [N]2660
Static Load Rating [N]2280
Limiting Speed - Grease [rpm]25000
Limiting Speed - Oil [rpm]37000
Mass (g)2.4
