BWU60-60

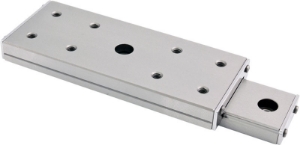

Ondrives Precision Gears and Gearboxes Part number BWU60-60

BWU60-60

All Stainless Steel Construction Precision Linear Slide Unit, Suitable for use in a Clean Room
Ondrives Precision Gears and Gearboxes Part number BWU60-60 Ondrives Precision Gears and Gearboxes Part number BWU60-60 Ondrives Precision Gears and Gearboxes Part number BWU60-60 Ondrives Precision Gears and Gearboxes Part number BWU60-60 Ondrives Precision Gears and Gearboxes Part number BWU60-60

Product specifications

Mass (g)363
Dimension [W]60
Dimension [k] [H]16
Dimension [H1]3.6
Dimension [N]9
Dimension [L]60
Max. Stroke34
Dimension [W1]36
Dimension [L1]40
Thread [d]M4
Dimension [S1]4
Dimension [t]1.1
Dimension [W3]42
Dimension [H2]10
Dimension [W4]23
Dimension [n]1
Dimension [P]40
Diameter [d1]4.5
Dimension [x]8
Dimension [h]4.5
Basic Dynamic Load Rating [N]4740
Basic Static Load Rating [N]5690
Allowable Load F (N)1900
Static Rated Torque T0 Nm124

Product specifications

Mass (g)363
Dimension [W]60
Dimension [k] [H]16
Dimension [H1]3.6
Dimension [N]9
Dimension [L]60
Max. Stroke34
Dimension [W1]36
Dimension [L1]40
Thread [d]M4
Dimension [S1]4
Dimension [t]1.1
Dimension [W3]42
Dimension [H2]10
Dimension [W4]23
Dimension [n]1
Dimension [P]40
Diameter [d1]4.5
Dimension [x]8
Dimension [h]4.5
Basic Dynamic Load Rating [N]4740
Basic Static Load Rating [N]5690
Allowable Load F (N)1900
Static Rated Torque T0 Nm124
