BWU40-60

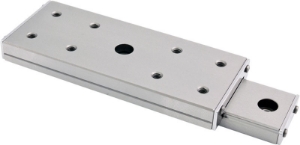

Ondrives Precision Gears and Gearboxes Part number BWU40-60

BWU40-60

All Stainless Steel Construction Precision Linear Slide Unit, Suitable for use in a Clean Room
Ondrives Precision Gears and Gearboxes Part number BWU40-60 Ondrives Precision Gears and Gearboxes Part number BWU40-60 Ondrives Precision Gears and Gearboxes Part number BWU40-60 Ondrives Precision Gears and Gearboxes Part number BWU40-60 Ondrives Precision Gears and Gearboxes Part number BWU40-60

Product specifications

Mass (g)209
Dimension [W]40
Dimension [k] [H]14
Dimension [H1]3.5
Dimension [N]8
Dimension [L]60
Max. Stroke39
Dimension [W1]20
Dimension [L1]40
Thread [d]M4
Dimension [S1]4
Dimension [t]1
Dimension [W3]24
Dimension [H2]8.5
Dimension [n]1
Dimension [P]40
Diameter [d1]4.5
Dimension [x]8
Dimension [h]4.5
Basic Dynamic Load Rating [N]3100
Basic Static Load Rating [N]3970
Allowable Load F (N)1320
Static Rated Torque T0 Nm50

Product specifications

Mass (g)209
Dimension [W]40
Dimension [k] [H]14
Dimension [H1]3.5
Dimension [N]8
Dimension [L]60
Max. Stroke39
Dimension [W1]20
Dimension [L1]40
Thread [d]M4
Dimension [S1]4
Dimension [t]1
Dimension [W3]24
Dimension [H2]8.5
Dimension [n]1
Dimension [P]40
Diameter [d1]4.5
Dimension [x]8
Dimension [h]4.5
Basic Dynamic Load Rating [N]3100
Basic Static Load Rating [N]3970
Allowable Load F (N)1320
Static Rated Torque T0 Nm50
