BWU25-75

Ondrives Precision Gears and Gearboxes Part number BWU25-75

BWU25-75

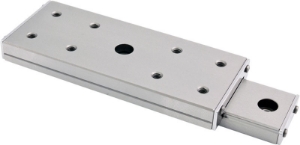

All Stainless Steel Construction Precision Linear Slide Unit, Suitable for use in a Clean Room
Ondrives Precision Gears and Gearboxes Part number BWU25-75 Ondrives Precision Gears and Gearboxes Part number BWU25-75 Ondrives Precision Gears and Gearboxes Part number BWU25-75 Ondrives Precision Gears and Gearboxes Part number BWU25-75 Ondrives Precision Gears and Gearboxes Part number BWU25-75

Product specifications

Mass (g)104
Dimension [W]25
Dimension [k] [H]9
Dimension [H1]1.8
Dimension [N]5.5
Dimension [L]75
Max. Stroke48
Dimension [W1]10
Dimension [L1]55
Dimension [b]25
Thread [d]M3
Dimension [S1]2.5
Dimension [L3]37.5
Dimension [d]6.5
Dimension [t]0.9
Dimension [W3]14
Dimension [H2]5.2
Dimension [n]2
Dimension [P]30
Diameter [d1]3.5
Dimension [x]6
Dimension [h]3.2
Basic Dynamic Load Rating [N]1760
Basic Static Load Rating [N]3020
Allowable Load F (N)1010
Static Rated Torque T0 Nm22.5

Product specifications

Mass (g)104
Dimension [W]25
Dimension [k] [H]9
Dimension [H1]1.8
Dimension [N]5.5
Dimension [L]75
Max. Stroke48
Dimension [W1]10
Dimension [L1]55
Dimension [b]25
Thread [d]M3
Dimension [S1]2.5
Dimension [L3]37.5
Dimension [d]6.5
Dimension [t]0.9
Dimension [W3]14
Dimension [H2]5.2
Dimension [n]2
Dimension [P]30
Diameter [d1]3.5
Dimension [x]6
Dimension [h]3.2
Basic Dynamic Load Rating [N]1760
Basic Static Load Rating [N]3020
Allowable Load F (N)1010
Static Rated Torque T0 Nm22.5
