BWU25-60

Ondrives Precision Gears and Gearboxes Part number BWU25-60

BWU25-60

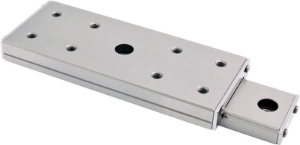

All Stainless Steel Construction Precision Linear Slide Unit, Suitable for use in a Clean Room
Ondrives Precision Gears and Gearboxes Part number BWU25-60 Ondrives Precision Gears and Gearboxes Part number BWU25-60 Ondrives Precision Gears and Gearboxes Part number BWU25-60 Ondrives Precision Gears and Gearboxes Part number BWU25-60 Ondrives Precision Gears and Gearboxes Part number BWU25-60

Product specifications

Mass (g)84.3
Dimension [W]25
Dimension [k] [H]9
Dimension [H1]1.8
Dimension [N]5.5
Dimension [L]60
Max. Stroke38
Dimension [W1]10
Dimension [L1]25
Thread [d]M3
Dimension [S1]2.5
Dimension [t]0.9
Dimension [W3]14
Dimension [H2]5.2
Dimension [n]1
Dimension [P]30
Diameter [d1]3.5
Dimension [x]6
Dimension [h]3.2
Basic Dynamic Load Rating [N]1490
Basic Static Load Rating [N]2380
Allowable Load F (N)794
Static Rated Torque T0 Nm17.7

Product specifications

Mass (g)84.3
Dimension [W]25
Dimension [k] [H]9
Dimension [H1]1.8
Dimension [N]5.5
Dimension [L]60
Max. Stroke38
Dimension [W1]10
Dimension [L1]25
Thread [d]M3
Dimension [S1]2.5
Dimension [t]0.9
Dimension [W3]14
Dimension [H2]5.2
Dimension [n]1
Dimension [P]30
Diameter [d1]3.5
Dimension [x]6
Dimension [h]3.2
Basic Dynamic Load Rating [N]1490
Basic Static Load Rating [N]2380
Allowable Load F (N)794
Static Rated Torque T0 Nm17.7
