BWU10-25

Ondrives Precision Gears and Gearboxes Part number BWU10-25

BWU10-25

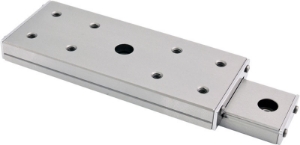

All Stainless Steel Construction Precision Linear Slide Unit, Suitable for use in a Clean Room
Ondrives Precision Gears and Gearboxes Part number BWU10-25 Ondrives Precision Gears and Gearboxes Part number BWU10-25 Ondrives Precision Gears and Gearboxes Part number BWU10-25 Ondrives Precision Gears and Gearboxes Part number BWU10-25 Ondrives Precision Gears and Gearboxes Part number BWU10-25

Product specifications

Mass (g)5.7
Dimension [W]10
Dimension [k] [H]4
Dimension [H1]1
Dimension [N]3
Dimension [L]25
Max. Stroke16
Dimension [L1]13
Thread [d]M2
Dimension [S1]0.8
Dimension [t]0.45
Dimension [W3]4
Dimension [H2]2.6
Dimension [n]1
Dimension [P]10
Diameter [d1]1.8
Dimension [x]2.8
Dimension [h]0.75
Basic Dynamic Load Rating [N]370
Basic Static Load Rating [N]494
Allowable Load F (N)165
Static Rated Torque T0 Nm1.1

Product specifications

Mass (g)5.7
Dimension [W]10
Dimension [k] [H]4
Dimension [H1]1
Dimension [N]3
Dimension [L]25
Max. Stroke16
Dimension [L1]13
Thread [d]M2
Dimension [S1]0.8
Dimension [t]0.45
Dimension [W3]4
Dimension [H2]2.6
Dimension [n]1
Dimension [P]10
Diameter [d1]1.8
Dimension [x]2.8
Dimension [h]0.75
Basic Dynamic Load Rating [N]370
Basic Static Load Rating [N]494
Allowable Load F (N)165
Static Rated Torque T0 Nm1.1
