BSR2580SL

Ondrives Precision Gears and Gearboxes Part number BSR2580SL

BSR2580SL

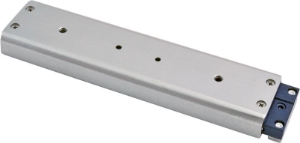

Stainless Steel Precision Linear Slide Unit, Non-Recirculating Ball Type, Endless Linear Motion
Ondrives Precision Gears and Gearboxes Part number BSR2580SL Ondrives Precision Gears and Gearboxes Part number BSR2580SL Ondrives Precision Gears and Gearboxes Part number BSR2580SL

Product specifications

Mass (g)58.4
Dimension [W]25
Dimension [k] [H]10
Dimension [L]80
Max. Stroke43
Dimension [w]21.4
Dimension [L0]50
Dimension [L1]42
Thread [M1]M3
Dimension [s1]2.4
Dimension [t1]1.6
Dimension [b]50
Thread [M2]M3
Dimension [s2]3.5
Dimension [h]9
Dimension [t2]1.6
Basic Dynamic Load Rating [N]1170
Basic Static Load Rating [N]772
