BSR2080SL

Ondrives Precision Gears and Gearboxes Part number BSR2080SL

BSR2080SL

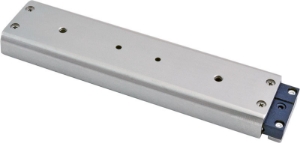

Stainless Steel Precision Linear Slide Unit, Non-Recirculating Ball Type, Endless Linear Motion
Ondrives Precision Gears and Gearboxes Part number BSR2080SL Ondrives Precision Gears and Gearboxes Part number BSR2080SL Ondrives Precision Gears and Gearboxes Part number BSR2080SL

Product specifications

Mass (g)41.6
Dimension [W]20
Dimension [k] [H]10
Dimension [L]80
Max. Stroke52
Dimension [w]16.8
Dimension [L0]40
Dimension [L1]32
Thread [M1]M3
Dimension [s1]2.2
Dimension [t1]1.4
Dimension [b]50
Thread [M2]M3
Dimension [s2]3.5
Dimension [h]9
Dimension [t2]1.4
Basic Dynamic Load Rating [N]921
Basic Static Load Rating [N]551

Product specifications

Mass (g)41.6
Dimension [W]20
Dimension [k] [H]10
Dimension [L]80
Max. Stroke52
Dimension [w]16.8
Dimension [L0]40
Dimension [L1]32
Thread [M1]M3
Dimension [s1]2.2
Dimension [t1]1.4
Dimension [b]50
Thread [M2]M3
Dimension [s2]3.5
Dimension [h]9
Dimension [t2]1.4
Basic Dynamic Load Rating [N]921
Basic Static Load Rating [N]551
