BSR1230SL

Ondrives Precision Gears and Gearboxes Part number BSR1230SL

BSR1230SL

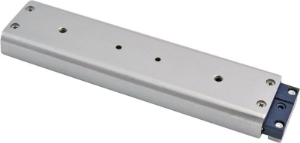

Stainless Steel Precision Linear Slide Unit, Non-Recirculating Ball Type, Endless Linear Motion
Ondrives Precision Gears and Gearboxes Part number BSR1230SL Ondrives Precision Gears and Gearboxes Part number BSR1230SL Ondrives Precision Gears and Gearboxes Part number BSR1230SL

Product specifications

Mass (g)5.8
Dimension [W]12
Dimension [k] [H]4.5
Dimension [L]30
Max. Stroke13
Dimension [w]9.8
Dimension [L0]21.5
Dimension [L1]15
Thread [M1]M2
Dimension [s1]1.3
Dimension [t1]0.9
Dimension [b]15
Thread [M2]M2
Dimension [s2]1.6
Dimension [h]4
Dimension [t2]0.90
Basic Dynamic Load Rating [N]214
Basic Static Load Rating [N]140

Product specifications

Mass (g)5.8
Dimension [W]12
Dimension [k] [H]4.5
Dimension [L]30
Max. Stroke13
Dimension [w]9.8
Dimension [L0]21.5
Dimension [L1]15
Thread [M1]M2
Dimension [s1]1.3
Dimension [t1]0.9
Dimension [b]15
Thread [M2]M2
Dimension [s2]1.6
Dimension [h]4
Dimension [t2]0.90
Basic Dynamic Load Rating [N]214
Basic Static Load Rating [N]140
