BSPG25100SL

Ondrives Precision Gears and Gearboxes Part number BSPG25100SL

BSPG25100SL

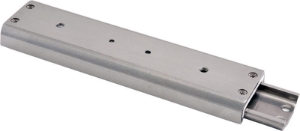

Stainless Steel Precision Linear Slide Unit, Non-Recirculating Ball Type, Built in Rack and Pinion
Ondrives Precision Gears and Gearboxes Part number BSPG25100SL Ondrives Precision Gears and Gearboxes Part number BSPG25100SL Ondrives Precision Gears and Gearboxes Part number BSPG25100SL

Product specifications

Mass (g)80
Dimension [W]25
Dimension [k] [H]10
Dimension [L]100
Max. Stroke56
Dimension [L1]60
Thread [M1]M3
Dimension [S1]3.5
Dimension [h1]9
Dimension [t1]1.6
Dimension [Lb]96
Dimension [w]18.4
Dimension [b]60
Thread [M2]M3
Dimension [S2]3
Dimension [h2]5.7
Dimension [t2]1.6
Basic Dynamic Load Rating [N]1460
Basic Static Load Rating [N]1050

Product specifications

Mass (g)80
Dimension [W]25
Dimension [k] [H]10
Dimension [L]100
Max. Stroke56
Dimension [L1]60
Thread [M1]M3
Dimension [S1]3.5
Dimension [h1]9
Dimension [t1]1.6
Dimension [Lb]96
Dimension [w]18.4
Dimension [b]60
Thread [M2]M3
Dimension [S2]3
Dimension [h2]5.7
Dimension [t2]1.6
Basic Dynamic Load Rating [N]1460
Basic Static Load Rating [N]1050
