BSP730SL

Ondrives Precision Gears and Gearboxes Part number BSP730SL

BSP730SL

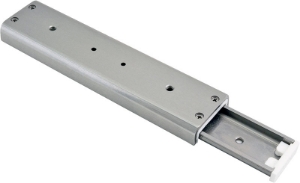

Stainless Steel Precision Linear Slide Unit, Non-Recirculating Ball Type, Limited Linear Motion
Ondrives Precision Gears and Gearboxes Part number BSP730SL Ondrives Precision Gears and Gearboxes Part number BSP730SL Ondrives Precision Gears and Gearboxes Part number BSP730SL

Product specifications

Mass (g)4.2
Dimension [W]7
Dimension [k] [H]4
Dimension [L]30
Max. Stroke18
Dimension [L1]20
Thread [M1]M2
Dimension [S1]1
Dimension [h1]3.4
Dimension [t1]0.9
Dimension [w]3.6
Dimension [b]20
Thread [M2]M2
Dimension [S2]2
Dimension [t2]2
Basic Dynamic Load Rating [N]170
Basic Static Load Rating [N]98

Product specifications

Mass (g)4.2
Dimension [W]7
Dimension [k] [H]4
Dimension [L]30
Max. Stroke18
Dimension [L1]20
Thread [M1]M2
Dimension [S1]1
Dimension [h1]3.4
Dimension [t1]0.9
Dimension [w]3.6
Dimension [b]20
Thread [M2]M2
Dimension [S2]2
Dimension [t2]2
Basic Dynamic Load Rating [N]170
Basic Static Load Rating [N]98
