BSP2050SL

Ondrives Precision Gears and Gearboxes Part number BSP2050SL

BSP2050SL

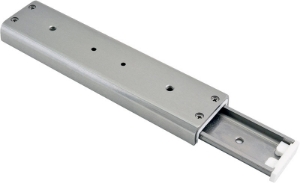

Stainless Steel Precision Linear Slide Unit, Non-Recirculating Ball Type, Limited Linear Motion
Ondrives Precision Gears and Gearboxes Part number BSP2050SL Ondrives Precision Gears and Gearboxes Part number BSP2050SL Ondrives Precision Gears and Gearboxes Part number BSP2050SL

Product specifications

Mass (g)29.7
Dimension [W]20
Dimension [k] [H]10
Dimension [L]50
Max. Stroke28
Dimension [L1]34
Thread [M1]M3
Dimension [S1]3.2
Dimension [h1]9
Dimension [t1]1.4
Dimension [w]16
Dimension [b]34
Thread [M2]M3
Dimension [S2]3.5
Dimension [h2]6.2
Dimension [t2]1.4
Basic Dynamic Load Rating [N]866
Basic Static Load Rating [N]496

Product specifications

Mass (g)29.7
Dimension [W]20
Dimension [k] [H]10
Dimension [L]50
Max. Stroke28
Dimension [L1]34
Thread [M1]M3
Dimension [S1]3.2
Dimension [h1]9
Dimension [t1]1.4
Dimension [w]16
Dimension [b]34
Thread [M2]M3
Dimension [S2]3.5
Dimension [h2]6.2
Dimension [t2]1.4
Basic Dynamic Load Rating [N]866
Basic Static Load Rating [N]496
