BSP1045SL

Ondrives Precision Gears and Gearboxes Part number BSP1045SL

BSP1045SL

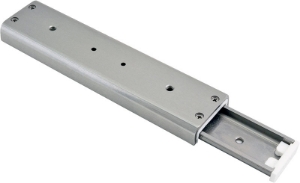

Stainless Steel Precision Linear Slide Unit, Non-Recirculating Ball Type, Limited Linear Motion
Ondrives Precision Gears and Gearboxes Part number BSP1045SL Ondrives Precision Gears and Gearboxes Part number BSP1045SL Ondrives Precision Gears and Gearboxes Part number BSP1045SL

Product specifications

Mass (g)11.3
Dimension [W]10
Dimension [k] [H]6
Dimension [L]45
Max. Stroke38
Dimension [L1]35
Thread [M1]M2.6
Dimension [S1]1.5
Dimension [h1]5.8
Dimension [t1]1.1
Dimension [w]6.2
Dimension [b]35
Thread [M2]M2.6
Dimension [S2]2.7
Dimension [h2]3.7
Dimension [t2]2.7
Basic Dynamic Load Rating [N]453
Basic Static Load Rating [N]233

Product specifications

Mass (g)11.3
Dimension [W]10
Dimension [k] [H]6
Dimension [L]45
Max. Stroke38
Dimension [L1]35
Thread [M1]M2.6
Dimension [S1]1.5
Dimension [h1]5.8
Dimension [t1]1.1
Dimension [w]6.2
Dimension [b]35
Thread [M2]M2.6
Dimension [S2]2.7
Dimension [h2]3.7
Dimension [t2]2.7
Basic Dynamic Load Rating [N]453
Basic Static Load Rating [N]233
