BSP1025SL

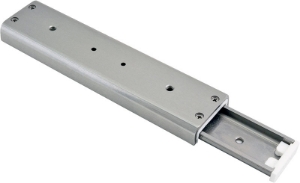

Ondrives Precision Gears and Gearboxes Part number BSP1025SL

BSP1025SL

Stainless Steel Precision Linear Slide Unit, Non-Recirculating Ball Type, Limited Linear Motion
Ondrives Precision Gears and Gearboxes Part number BSP1025SL Ondrives Precision Gears and Gearboxes Part number BSP1025SL Ondrives Precision Gears and Gearboxes Part number BSP1025SL

Product specifications

Mass (g)6.2
Dimension [W]10
Dimension [k] [H]6
Dimension [L]25
Max. Stroke15
Dimension [L1]15
Thread [M1]M2.6
Dimension [S1]1.5
Dimension [h1]5.8
Dimension [t1]1.1
Dimension [w]6.2
Dimension [b]15
Thread [M2]M2.6
Dimension [S2]2.7
Dimension [h2]3.7
Dimension [t2]2.7
Basic Dynamic Load Rating [N]340
Basic Static Load Rating [N]156

Product specifications

Mass (g)6.2
Dimension [W]10
Dimension [k] [H]6
Dimension [L]25
Max. Stroke15
Dimension [L1]15
Thread [M1]M2.6
Dimension [S1]1.5
Dimension [h1]5.8
Dimension [t1]1.1
Dimension [w]6.2
Dimension [b]15
Thread [M2]M2.6
Dimension [S2]2.7
Dimension [h2]3.7
Dimension [t2]2.7
Basic Dynamic Load Rating [N]340
Basic Static Load Rating [N]156
