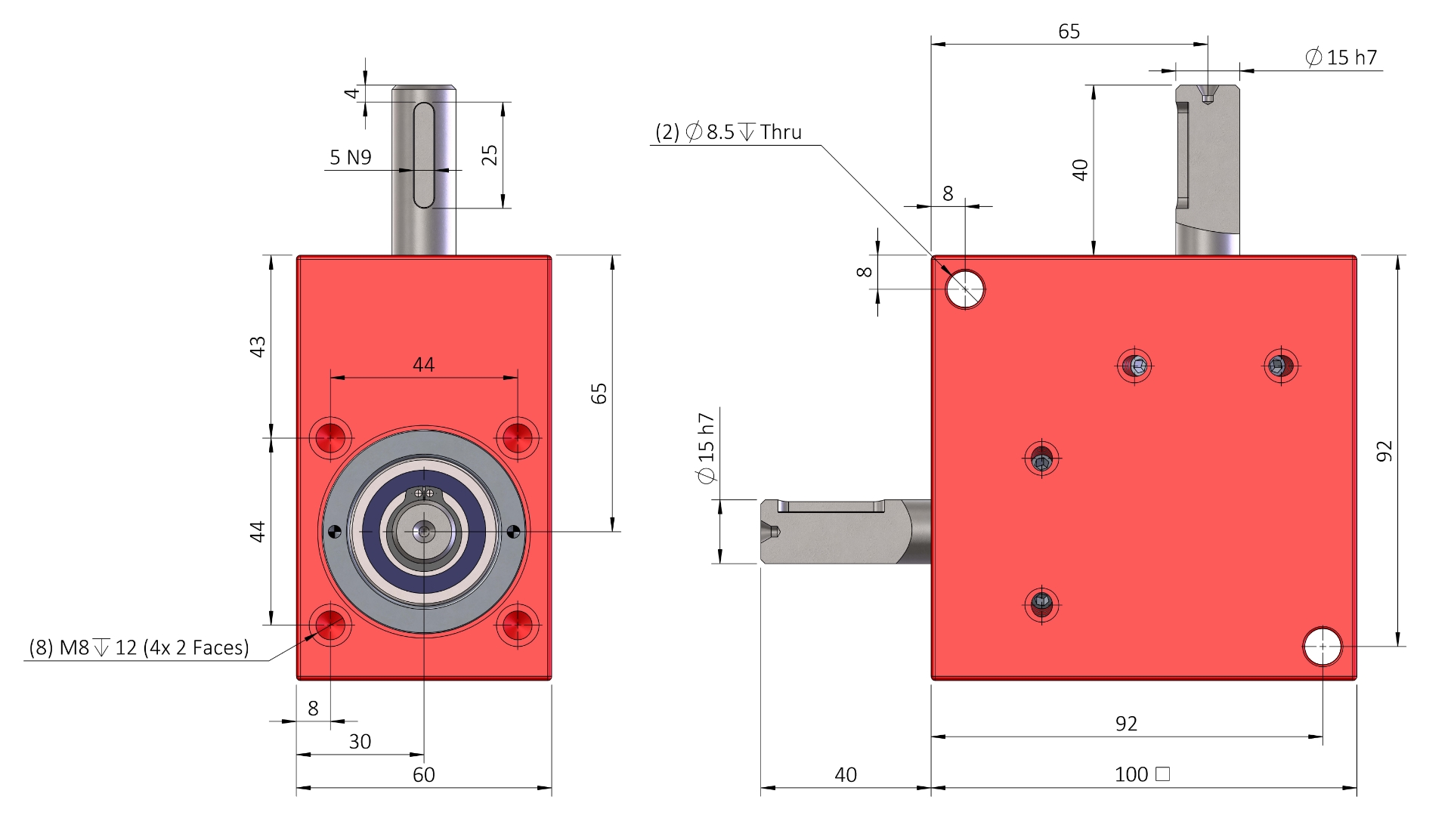

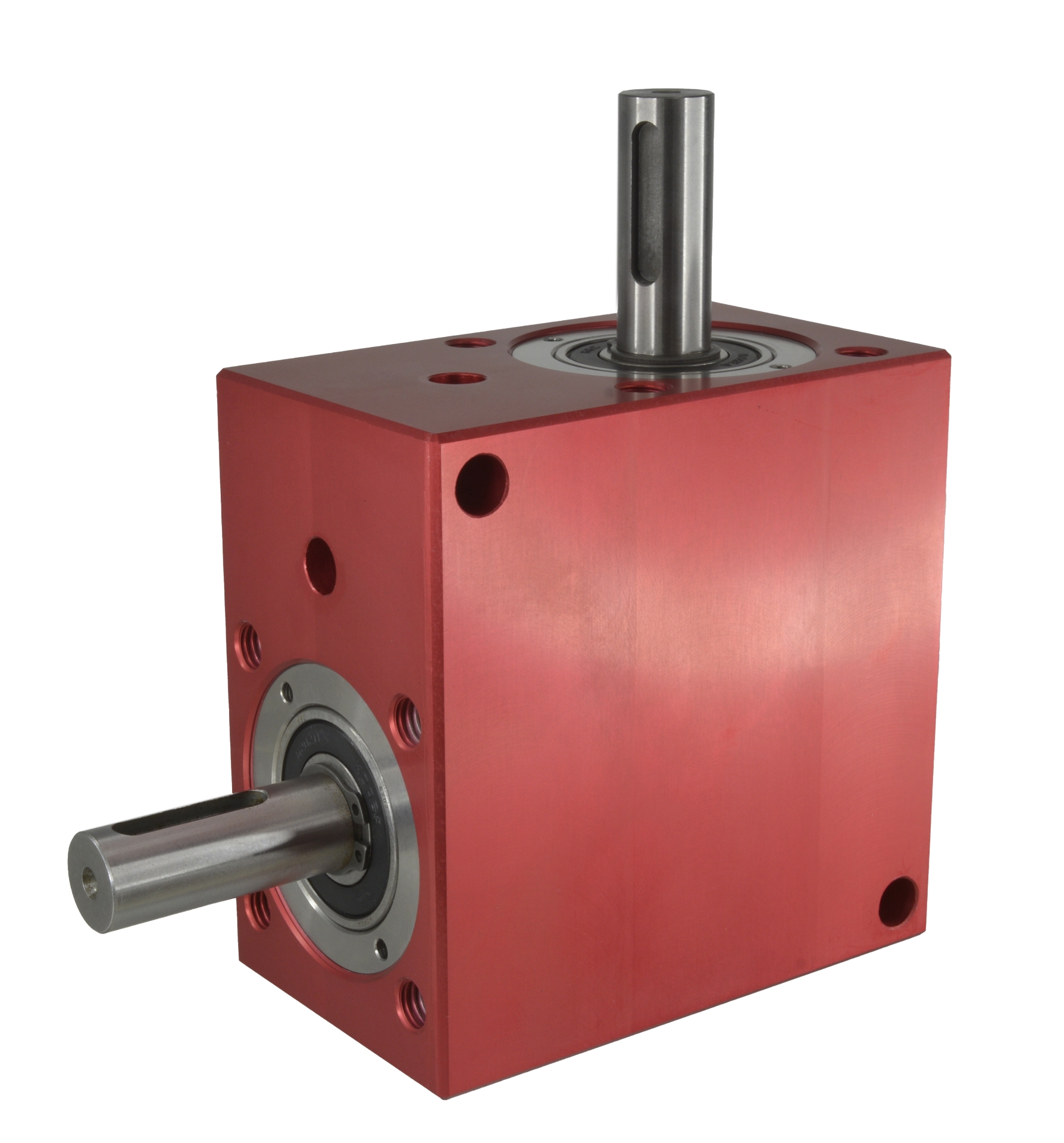

BLH50-BLHT50 30Nm Ø15-Shafts
Spiral Bevel Gearboxes
Designed and Manufactured by Ondrives at our factory in the UK.
| Sku (Part No.) | Type | Gear Ratio [i=] | Output Torque T₂n [Nm] | Output Backlash j |
|---|---|---|---|---|
| BLH50-1 | 1 x Input 1 x Output | 1:1 | 15.90 | ≤0.75° |
| BLH50-2 | 1 x Input 1 x Output | 2:1 | 10.20 | ≤0.75° |
| BLHT50-1 | 1 x Input 2 x Output (Thru Shaft) | 1:1 | 15.90 | ≤0.75° |
| BLHT50-2 | 1 x Input 2 x Output (Thru Shaft) | 2:1 | 10.20 | ≤0.75° |
| BLH50-1A | 1 x Input 1 x Output | 1:1 | 15.90 | ≤0.5° |
| BLH50-2A | 1 x Input 1 x Output | 2:1 | 10.20 | ≤0.5° |
| BLHT50-1A | 1 x Input 2 x Output (Thru Shaft) | 1:1 | 15.90 | ≤0.5° |
| BLHT50-2A | 1 x Input 2 x Output (Thru Shaft) | 2:1 | 10.20 | ≤0.5° |
| BLH50-2AR | 1 x Input 1 x Output | 2:1 | 10.20 | ≤0.16° |
| BLHT50-1AR | 1 x Input 2 x Output (Thru Shaft) | 1:1 | 15.90 | ≤0.16° |
| BLHT50-2AR | 1 x Input 2 x Output (Thru Shaft) | 2:1 | 10.20 | ≤0.16° |
| BLH50-1AR | 1 x Input 1 x Output | 1:1 | 15.90 | ≤0.16° |
