BLHM50 30Nm-Ø15-Shafts 3-Spiral-Bevels
BLHM50-1AR
BLHM50-1AR

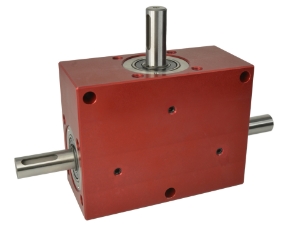

Spiral Bevel Gearbox 2 Output Shafts Counter Rotating, ≤10' backlash, 15mm shafts, 11.50Nm-30.00Nm output torque, ratio 1:1
Product specifications
Gear Ratio [i=]
1:1
Output Backlash j
≤0.16°
Output Torque T₂n [Nm]
15.90
Efficiency n1 1000 r/min [ηz]
88%
Mass [kg]
2.52
Max. Input Radial Load Fr1 N
200
Max. Output Radial Load Fr2 N
200
Max. Output Axial Load Fa2 N
100
Lubrication Grease
Shell Gadus S2 V220AD 2
Specifications
Product PDF
Technical
Overview
Product specifications
Gear Ratio [i=]
1:1
Output Backlash j
≤0.16°
Output Torque T₂n [Nm]
15.90
Efficiency n1 1000 r/min [ηz]
88%
Mass [kg]
2.52
Max. Input Radial Load Fr1 N
200
Max. Output Radial Load Fr2 N
200
Max. Output Axial Load Fa2 N
100
Lubrication Grease
Shell Gadus S2 V220AD 2
