BGC57-T

Ondrives Precision Gears and Gearboxes Part number BGC57-T

BGC57-T

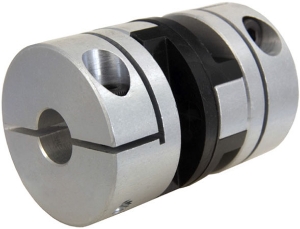

Lateral Offset Through Hub Oldham Coupling, Aluminium Hubs and Black Acetal Disc, Clamp Fixing
Ondrives Precision Gears and Gearboxes Part number BGC57-T Ondrives Precision Gears and Gearboxes Part number BGC57-T Ondrives Precision Gears and Gearboxes Part number BGC57-T Ondrives Precision Gears and Gearboxes Part number BGC57-T

Product specifications

Fixing TypeClamp
Hub TypeThrough Hub
Min. Bore Diameter [D1] & [D2]12
Max. Bore Diameter [D1] & [D2]30
Diameter [A]57.1
Dimension [L]78
Dimension [L1]28.4
Dimension [b]21.2
Thread [d]M6
Static Break Torque150
Peak Torque (Nm)44
Mass (g)361
Moment of Inertia kg•m² x 10-812410
Max. Parallel Offset (mm)±0.25
Max. Axial Play±0.20
Torsional Rate deg/Nm0.022
Static Stiffness (Nm/rad)2610
Max. Tightening Torque Nm19.34
Wrench mm5

Product specifications

Fixing TypeClamp
Hub TypeThrough Hub
Min. Bore Diameter [D1] & [D2]12
Max. Bore Diameter [D1] & [D2]30
Diameter [A]57.1
Dimension [L]78
Dimension [L1]28.4
Dimension [b]21.2
Thread [d]M6
Static Break Torque150
Peak Torque (Nm)44
Mass (g)361
Moment of Inertia kg•m² x 10-812410
Max. Parallel Offset (mm)±0.25
Max. Axial Play±0.20
Torsional Rate deg/Nm0.022
Static Stiffness (Nm/rad)2610
Max. Tightening Torque Nm19.34
Wrench mm5
