BGC33S

Ondrives Precision Gears and Gearboxes Part number BGC33S

BGC33S

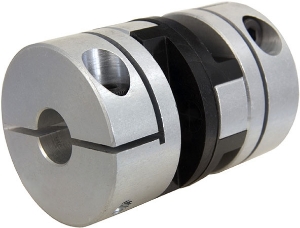

Lateral Offset Blind Hub Oldham Coupling, Aluminium Hubs and Black Acetal Disc, Clamp Fixing (Shorter Length)
Ondrives Precision Gears and Gearboxes Part number BGC33S Ondrives Precision Gears and Gearboxes Part number BGC33S Ondrives Precision Gears and Gearboxes Part number BGC33S Ondrives Precision Gears and Gearboxes Part number BGC33S

Product specifications

Fixing TypeClamp
Hub TypeBlind Hub
Min. Bore Diameter [D1] & [D2]8
Max. Bore Diameter [D1] & [D2]16
Diameter [A]33.3
Dimension [L]42
Dimension [L1]13
Dimension [b]16
Static Break Torque53
Thread [d]M4
Peak Torque (Nm)9
Mass (g)72
Moment of Inertia kg•m² x 10-81074
Max. Parallel Offset (mm)±0.20
Max. Axial Play±0.15
Torsional Rate deg/Nm0.093
Static Stiffness (Nm/rad)615
Max. Tightening Torque Nm2.33
Wrench mm2.0

Product specifications

Fixing TypeClamp
Hub TypeBlind Hub
Min. Bore Diameter [D1] & [D2]8
Max. Bore Diameter [D1] & [D2]16
Diameter [A]33.3
Dimension [L]42
Dimension [L1]13
Dimension [b]16
Static Break Torque53
Thread [d]M4
Peak Torque (Nm)9
Mass (g)72
Moment of Inertia kg•m² x 10-81074
Max. Parallel Offset (mm)±0.20
Max. Axial Play±0.15
Torsional Rate deg/Nm0.093
Static Stiffness (Nm/rad)615
Max. Tightening Torque Nm2.33
Wrench mm2.0
