BGC33-T

Ondrives Precision Gears and Gearboxes Part number BGC33-T

BGC33-T

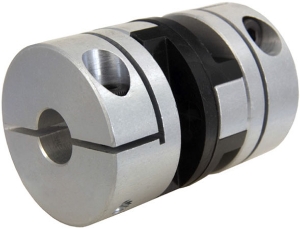

Lateral Offset Through Hub Oldham Coupling, Aluminium Hubs and Black Acetal Disc, Clamp Fixing
Ondrives Precision Gears and Gearboxes Part number BGC33-T Ondrives Precision Gears and Gearboxes Part number BGC33-T Ondrives Precision Gears and Gearboxes Part number BGC33-T Ondrives Precision Gears and Gearboxes Part number BGC33-T

Product specifications

Fixing TypeClamp
Hub TypeThrough Hub
Min. Bore Diameter [D1] & [D2] H78
Max. Bore Diameter [D1] & [D2]16
Diameter [A]33.3
Dimension [L]48
Dimension [L1]15
Dimension [b]18
Thread [d]M4
Static Break Torque53
Peak Torque (Nm)9
Mass (g)74
Moment of Inertia kg•m² x 10-81133
Max. Parallel Offset (mm)±0.20
Max. Axial Play±0.15
Torsional Rate deg/Nm0.093
Static Stiffness (Nm/rad)615
Max. Tightening Torque Nm5.66
Wrench mm3

Product specifications

Fixing TypeClamp
Hub TypeThrough Hub
Min. Bore Diameter [D1] & [D2] H78
Max. Bore Diameter [D1] & [D2]16
Diameter [A]33.3
Dimension [L]48
Dimension [L1]15
Dimension [b]18
Thread [d]M4
Static Break Torque53
Peak Torque (Nm)9
Mass (g)74
Moment of Inertia kg•m² x 10-81133
Max. Parallel Offset (mm)±0.20
Max. Axial Play±0.15
Torsional Rate deg/Nm0.093
Static Stiffness (Nm/rad)615
Max. Tightening Torque Nm5.66
Wrench mm3
