BGC25-T

Ondrives Precision Gears and Gearboxes Part number BGC25-T

BGC25-T

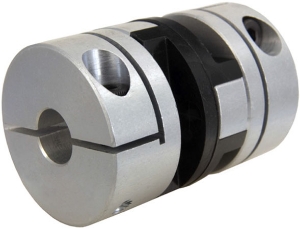

Lateral Offset Through Hub Oldham Coupling, Aluminium Hubs and Black Acetal Disc, Clamp Fixing
Ondrives Precision Gears and Gearboxes Part number BGC25-T Ondrives Precision Gears and Gearboxes Part number BGC25-T Ondrives Precision Gears and Gearboxes Part number BGC25-T Ondrives Precision Gears and Gearboxes Part number BGC25-T

Product specifications

Fixing TypeClamp
Hub TypeThrough Hub
Min. Bore Diameter [D1] & [D2]6
Max. Bore Diameter [D1] & [D2]12
Diameter [A]25.4
Dimension [L]32.4
Dimension [L1]11.6
Dimension [b]9.2
Thread [d]M3
Static Break Torque13
Peak Torque (Nm)4
Mass (g)31
Moment of Inertia kg•m² x 10-8252
Max. Parallel Offset (mm)±0.20
Max. Axial Play±0.10
Torsional Rate deg/Nm0.28
Static Stiffness (Nm/rad)205
Max. Tightening Torque Nm2.43
Wrench mm2.5

Product specifications

Fixing TypeClamp
Hub TypeThrough Hub
Min. Bore Diameter [D1] & [D2]6
Max. Bore Diameter [D1] & [D2]12
Diameter [A]25.4
Dimension [L]32.4
Dimension [L1]11.6
Dimension [b]9.2
Thread [d]M3
Static Break Torque13
Peak Torque (Nm)4
Mass (g)31
Moment of Inertia kg•m² x 10-8252
Max. Parallel Offset (mm)±0.20
Max. Axial Play±0.10
Torsional Rate deg/Nm0.28
Static Stiffness (Nm/rad)205
Max. Tightening Torque Nm2.43
Wrench mm2.5
