BG57-T

Ondrives Precision Gears and Gearboxes Part number BG57-T

BG57-T

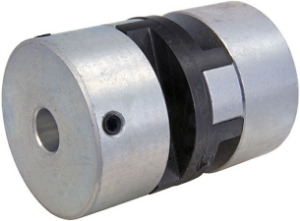

Lateral Offset Through Hub Oldham Coupling, Aluminium Hubs and Black Acetal Disc, Set Screw Fixing
Ondrives Precision Gears and Gearboxes Part number BG57-T Ondrives Precision Gears and Gearboxes Part number BG57-T Ondrives Precision Gears and Gearboxes Part number BG57-T Ondrives Precision Gears and Gearboxes Part number BG57-T

Product specifications

Fixing TypeSet Screw
Hub TypeThrough Hub
Min. Bore Diameter [D1] & [D2]12
Max. Bore Diameter [D1] & [D2]30
Diameter [A]57.1
Dimension [L]78
Dimension [L1]28.4
Dimension [b]21.2
Thread [d]M8
Static Break Torque150
Peak Torque (Nm)44
Mass (g)361
Moment of Inertia kg•m² x 10-812410
Max. Parallel Offset (mm)±0.25
Max. Axial Play±0.20
Torsional Rate deg/Nm0.022
Static Stiffness (Nm/rad)2610
Max. Tightening Torque Nm18.36
Wrench mm4

Product specifications

Fixing TypeSet Screw
Hub TypeThrough Hub
Min. Bore Diameter [D1] & [D2]12
Max. Bore Diameter [D1] & [D2]30
Diameter [A]57.1
Dimension [L]78
Dimension [L1]28.4
Dimension [b]21.2
Thread [d]M8
Static Break Torque150
Peak Torque (Nm)44
Mass (g)361
Moment of Inertia kg•m² x 10-812410
Max. Parallel Offset (mm)±0.25
Max. Axial Play±0.20
Torsional Rate deg/Nm0.022
Static Stiffness (Nm/rad)2610
Max. Tightening Torque Nm18.36
Wrench mm4
