BG33S

Ondrives Precision Gears and Gearboxes Part number BG33S

BG33S

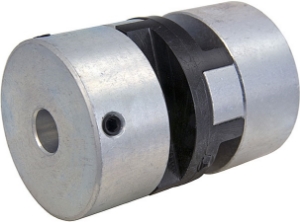

Lateral Offset Blind Hub Oldham Coupling, Aluminium Hubs and Black Acetal Disc, Set Screw Fixing (Shorter Length)
Ondrives Precision Gears and Gearboxes Part number BG33S Ondrives Precision Gears and Gearboxes Part number BG33S Ondrives Precision Gears and Gearboxes Part number BG33S Ondrives Precision Gears and Gearboxes Part number BG33S

Product specifications

Fixing TypeSet Screw
Hub TypeBlind Hub
Min. Bore Diameter [D1] & [D2]8
Max. Bore Diameter [D1] & [D2]16
Diameter [A]33.3
Dimension [L]42
Dimension [L1]13
Dimension [b]16
Static Break Torque53
Peak Torque (Nm)9
Thread [d]M5
Mass (g)72
Moment of Inertia kg•m² x 10-81074
Max. Parallel Offset (mm)±0.20
Max. Axial Play±0.15
Torsional Rate deg/Nm0.093
Static Stiffness (Nm/rad)615
Max. Tightening Torque Nm4.62
Wrench mm1.5

Product specifications

Fixing TypeSet Screw
Hub TypeBlind Hub
Min. Bore Diameter [D1] & [D2]8
Max. Bore Diameter [D1] & [D2]16
Diameter [A]33.3
Dimension [L]42
Dimension [L1]13
Dimension [b]16
Static Break Torque53
Peak Torque (Nm)9
Thread [d]M5
Mass (g)72
Moment of Inertia kg•m² x 10-81074
Max. Parallel Offset (mm)±0.20
Max. Axial Play±0.15
Torsional Rate deg/Nm0.093
Static Stiffness (Nm/rad)615
Max. Tightening Torque Nm4.62
Wrench mm1.5
