BG19-T

Ondrives Precision Gears and Gearboxes Part number BG19-T

BG19-T

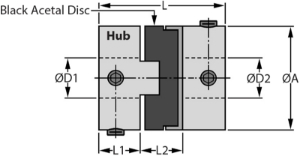

Lateral Offset Through Hub Oldham Coupling, Aluminium Hubs and Black Acetal Disc, Set Screw Fixing
Ondrives Precision Gears and Gearboxes Part number BG19-T Ondrives Precision Gears and Gearboxes Part number BG19-T

Product specifications

Hub TypeThrough Hub
Fixing TypeSet Screw
Min. Bore Diameter [D1] & [D2]4
Max. Bore Diameter [D1] & [D2]8
Diameter [A]19.1
Dimension [L]26
Dimension [L1]9.4
Dimension [b]7.2
Thread [d]M4
Static Break Torque8
Peak Torque (Nm)1.7
Mass (g)13
Moment of Inertia kg•m² x 10-859
Max. Parallel Offset (mm)±0.20
Max. Axial Play±0.10
Torsional Rate deg/Nm0.50
Static Stiffness (Nm/rad)115
Max. Tightening Torque Nm2.27
Wrench mm2.0

Product specifications

Hub TypeThrough Hub
Fixing TypeSet Screw
Min. Bore Diameter [D1] & [D2]4
Max. Bore Diameter [D1] & [D2]8
Diameter [A]19.1
Dimension [L]26
Dimension [L1]9.4
Dimension [b]7.2
Thread [d]M4
Static Break Torque8
Peak Torque (Nm)1.7
Mass (g)13
Moment of Inertia kg•m² x 10-859
Max. Parallel Offset (mm)±0.20
Max. Axial Play±0.10
Torsional Rate deg/Nm0.50
Static Stiffness (Nm/rad)115
Max. Tightening Torque Nm2.27
Wrench mm2.0
