LPF-25M

LPF-M Base Mount

LPF-25M

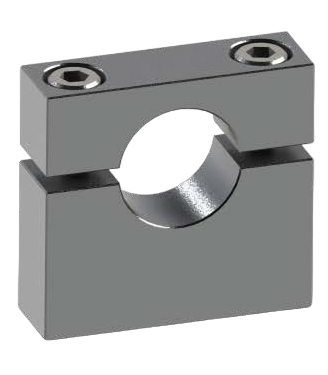

Aluminium Shaft Support,Base Mount, Top Loading

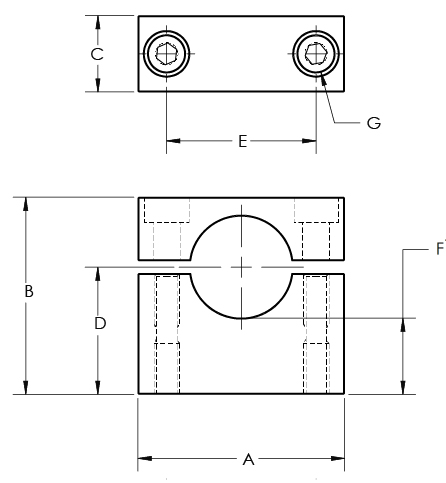

LPF-M Base Mount Drawing

Product specifications

TypeBase Mount
MaterialAluminium
Shaft Diameter25
Width [A]52
Height [B]44
Depth [C]19
Shaft Centre Line Height [D] +0/-0.0527
Fixing Centre Distance [E]38
Tab Thickness [F]15
Capscrew [G]M6
Mass [kg]0.083

Product specifications

TypeBase Mount
MaterialAluminium
Shaft Diameter25
Width [A]52
Height [B]44
Depth [C]19
Shaft Centre Line Height [D] +0/-0.0527
Fixing Centre Distance [E]38
Tab Thickness [F]15
Capscrew [G]M6
Mass [kg]0.083
