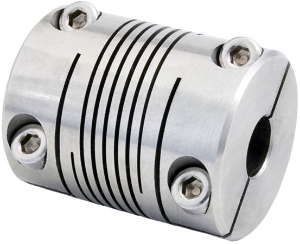

B3PAN5C
B3PAN5C
Spiral 3 Beam 303 Stainless Steel Coupling, Backlash free, Clamp Fixing
Product specifications
Material
AISI 303 (EN 1.4305) Stainless Steel
Fixing Type
Clamp
Bore Diameter [B] H7
5
Max. Bore Diameter
8
Diameter [A]
15.87
Dimension [L]
20.3
Dimension [C]
6
Cap Screw
M2.5
Angular Offset
5°
Parallel Offset
0.127
Max. Torque (Nm)
2.93
Specifications
Overview
Product specifications
Material
AISI 303 (EN 1.4305) Stainless Steel
Fixing Type
Clamp
Bore Diameter [B] H7
5
Max. Bore Diameter
8
Diameter [A]
15.87
Dimension [L]
20.3
Dimension [C]
6
Cap Screw
M2.5
Angular Offset
5°
Parallel Offset
0.127
Max. Torque (Nm)
2.93
