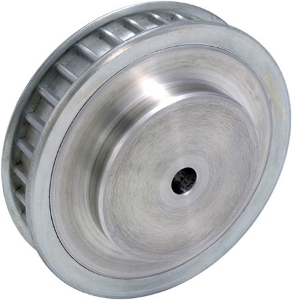

27AT5/32-2S
27AT5/32-2S
AT Synchronous Timing Pulley, 5mm Pitch, To Suit 16mm Wide Belts
Product specifications
Pulley Tooth
AT5
Belt Width
16
Material
AISI 303 (EN 1.4305) Stainless Steel
No. of Teeth [z]
32
Execution
1F
PCD [d0]
50.93
Tip Diameter [dk]
49.71
Flange Diameter [Df]
54
Hub Diameter [Dm]
38
Face Width [F]
21
Overall Width [L]
27
Bore Diameter [d]
8
No. of Flanges
2
Specifications
Technical
Overview
Product specifications
Pulley Tooth
AT5
Belt Width
16
Material
AISI 303 (EN 1.4305) Stainless Steel
No. of Teeth [z]
32
Execution
1F
PCD [d0]
50.93
Tip Diameter [dk]
49.71
Flange Diameter [Df]
54
Hub Diameter [Dm]
38
Face Width [F]
21
Overall Width [L]
27
Bore Diameter [d]
8
No. of Flanges
2
