27AT5/25-2S
27AT5/25-2S

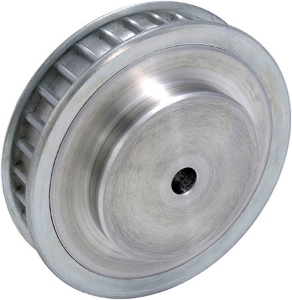

AT Synchronous Timing Pulley, 5mm Pitch, To Suit 16mm Wide Belts
Product specifications
Pulley Tooth
AT5
Belt Width
16
Material
AISI 303 (EN 1.4305) Stainless Steel
No. of Teeth [z]
25
Execution
1F
PCD [d0]
39.79
Tip Diameter [dk]
38.57
Flange Diameter [Df]
44
Hub Diameter [Dm]
26
Face Width [F]
21
Overall Width [L]
27
Bore Diameter [d]
6
No. of Flanges
2
Specifications
Technical
Overview
Product specifications
Pulley Tooth
AT5
Belt Width
16
Material
AISI 303 (EN 1.4305) Stainless Steel
No. of Teeth [z]
25
Execution
1F
PCD [d0]
39.79
Tip Diameter [dk]
38.57
Flange Diameter [Df]
44
Hub Diameter [Dm]
26
Face Width [F]
21
Overall Width [L]
27
Bore Diameter [d]
6
No. of Flanges
2
