AT High Torque Timing Pulleys & Belts
AT10 : Pulley 10mm Pitch 32mm Belt Width
47AT10/32-2SL
47AT10/32-2SL

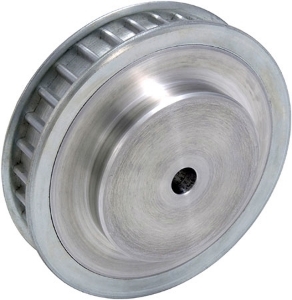

AT Synchronous Timing Pulley, 10mm Pitch, To Suit 32mm Wide Belts
Product specifications
Pulley Tooth
AT10
Belt Width
32
Material
AISI 316 (EN 1.4401) Stainless Steel
No. of Teeth [z]
32
Execution
1F
PCD [d0]
101.86
Tip Diameter [dk]
100
Flange Diameter [Df]
106
Hub Diameter [Dm]
65
Face Width [F]
37
Overall Width [L]
47
Bore Diameter [d]
12
No. of Flanges
2
Specifications
Technical
Overview
Product specifications
Pulley Tooth
AT10
Belt Width
32
Material
AISI 316 (EN 1.4401) Stainless Steel
No. of Teeth [z]
32
Execution
1F
PCD [d0]
101.86
Tip Diameter [dk]
100
Flange Diameter [Df]
106
Hub Diameter [Dm]
65
Face Width [F]
37
Overall Width [L]
47
Bore Diameter [d]
12
No. of Flanges
2
