40AT10/24-2S

Timing Pulleys and Timing Belts from Ondrives UK precision gear and gearbox manufacturer

40AT10/24-2S

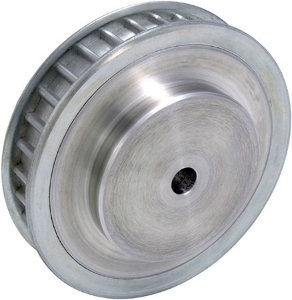

AT Synchronous Timing Pulley, 10mm Pitch, To Suit 25mm Wide Belts
Timing Pulleys and Timing Belts from Ondrives UK precision gear and gearbox manufacturer Timing Pulleys and Timing Belts from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Pulley Tooth AT10
Belt Width 25
Material AISI 303 (EN 1.4305) Stainless Steel
No. of Teeth [z] 24
Execution 1F
PCD [d0] 76.39
Tip Diameter [dk] 74.55
Flange Diameter [Df] 83
Hub Diameter [Dm] 58
Face Width [F] 30
Overall Width [L] 40
Bore Diameter [d] 8
No. of Flanges 2
