AT High Torque Timing Pulleys & Belts
AT10 : Pulley 10mm Pitch 25mm Belt Width

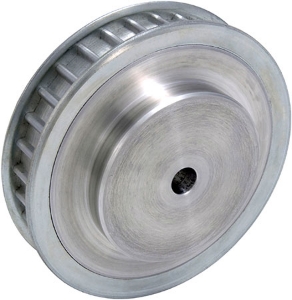

40AT10/22-2
40AT10/22-2
AT Synchronous Timing Pulley, 10mm Pitch, To Suit 25mm Wide Belts
Product specifications
Pulley Tooth
AT10
Belt Width
25
Material
Aluminium (6082-T6)
No. of Teeth [z]
22
Execution
1F
PCD [d0]
70.03
Tip Diameter [dk]
68.20
Flange Diameter [Df]
75
Hub Diameter [Dm]
52
Face Width [F]
30
Overall Width [L]
40
Bore Diameter [d]
8
No. of Flanges
2
Specifications
Technical
Overview
Product specifications
Pulley Tooth
AT10
Belt Width
25
Material
Aluminium (6082-T6)
No. of Teeth [z]
22
Execution
1F
PCD [d0]
70.03
Tip Diameter [dk]
68.20
Flange Diameter [Df]
75
Hub Diameter [Dm]
52
Face Width [F]
30
Overall Width [L]
40
Bore Diameter [d]
8
No. of Flanges
2
