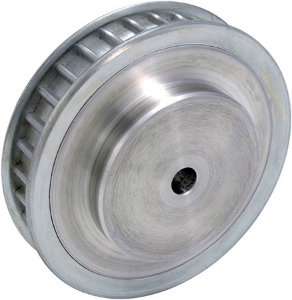

40AT10/20-2S
40AT10/20-2S
AT Synchronous Timing Pulley, 10mm Pitch, To Suit 25mm Wide Belts
Product specifications
Pulley Tooth
AT10
Belt Width
25
Material
AISI 303 (EN 1.4305) Stainless Steel
No. of Teeth [z]
20
Execution
1F
PCD [d0]
63.66
Tip Diameter [dk]
61.80
Flange Diameter [Df]
66.50
Hub Diameter [Dm]
46
Face Width [F]
30
Overall Width [L]
40
Bore Diameter [d]
8
No. of Flanges
2
Specifications
Technical
Overview
Product specifications
Pulley Tooth
AT10
Belt Width
25
Material
AISI 303 (EN 1.4305) Stainless Steel
No. of Teeth [z]
20
Execution
1F
PCD [d0]
63.66
Tip Diameter [dk]
61.80
Flange Diameter [Df]
66.50
Hub Diameter [Dm]
46
Face Width [F]
30
Overall Width [L]
40
Bore Diameter [d]
8
No. of Flanges
2
