Timing Pulleys
AT High Torque Timing Pulleys & Belts
AT10 : Pulley 10mm Pitch 25mm Belt Width

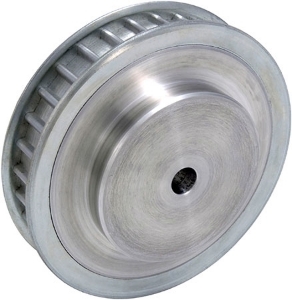

40AT10/16-2SL
40AT10/16-2SL
AT Synchronous Timing Pulley, 10mm Pitch, To Suit 25mm Wide Belts
Product specifications
Pulley Tooth
AT10
Belt Width
25
Material
AISI 316 (EN 1.4401) Stainless Steel
No. of Teeth [z]
16
Execution
1F
PCD [d0]
50.93
Tip Diameter [dk]
49.10
Flange Diameter [Df]
54
Hub Diameter [Dm]
35
Face Width [F]
30
Overall Width [L]
40
Bore Diameter [d]
8
No. of Flanges
2
Specifications
Technical
Overview
Product specifications
Pulley Tooth
AT10
Belt Width
25
Material
AISI 316 (EN 1.4401) Stainless Steel
No. of Teeth [z]
16
Execution
1F
PCD [d0]
50.93
Tip Diameter [dk]
49.10
Flange Diameter [Df]
54
Hub Diameter [Dm]
35
Face Width [F]
30
Overall Width [L]
40
Bore Diameter [d]
8
No. of Flanges
2
