P44-3GT-BLP-6C-12

Timing Pulleys and Timing Belts from Ondrives UK precision gear and gearbox manufacturer

P44-3GT-BLP-6C-12

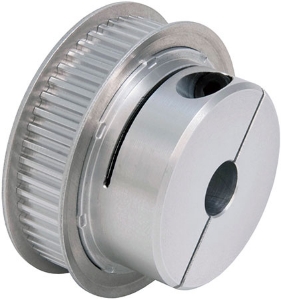

GT Synchronous Miniature Timing Pulley, 3mm Pitch, To Suit 6mm Wide Belts
Timing Pulleys and Timing Belts from Ondrives UK precision gear and gearbox manufacturer Timing Pulleys and Timing Belts from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Pulley Tooth 3GT
Belt Width 6
No. of Teeth [z] 44
Dimension [Dp] 42
Dimension [De] 41.3
Dimension [Db] 30
Dimension [E] 36
Dimension [Df] 46
Dimension [W] 11
Dimension [A] 7.3
Dimension [I] 1.85
Dimension [L] 11
Dimension [F] 4
Dimension [G] 11
Thread [d] M3
Wrench Torque (Nm) 1.5
Bore Diameter [D] 12
Max. Bore Diameter 14
Torque Capacity Nm (0-3200 min-¹) 1.85
Torque Capacity Nm (3201-5000 min-¹) 1.590
Max. Rotational Frequency min-¹ 5000
Moment of Inertia kg•m² 1.5 x 10-5
Mass (g) 67
