P22-3GT-BLP-6C-3

Timing Pulleys and Timing Belts from Ondrives UK precision gear and gearbox manufacturer

P22-3GT-BLP-6C-3

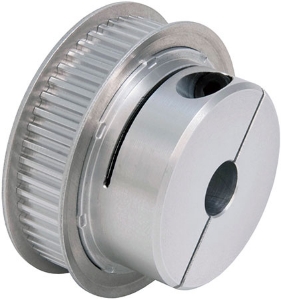

GT Synchronous Miniature Timing Pulley, 3mm Pitch, To Suit 6mm Wide Belts
Timing Pulleys and Timing Belts from Ondrives UK precision gear and gearbox manufacturer Timing Pulleys and Timing Belts from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Pulley Tooth3GT
Belt Width6
No. of Teeth [z]22
Dimension [Dp]21
Dimension [De]20.3
Dimension [Db]12
Dimension [E]16
Dimension [Df]24
Dimension [W]11
Dimension [A]7.3
Dimension [I]1.85
Dimension [L]7
Dimension [F]2.75
Dimension [G]4
Thread [d]M2
Wrench Torque (Nm)0.5
Bore Diameter [D]3
Max. Bore Diameter5
Torque Capacity Nm (0-3200 min-¹)0.783
Torque Capacity Nm (3201-5000 min-¹)0.661
Max. Rotational Frequency min-¹5000
Moment of Inertia kg•m²8.2 x 10-7
Mass (g)15
