P36-2GT-BLP-6C-4

Timing Pulleys and Timing Belts from Ondrives UK precision gear and gearbox manufacturer

P36-2GT-BLP-6C-4

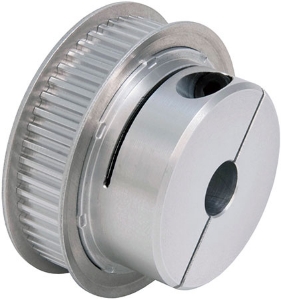

GT Synchronous Miniature Timing Pulley, 2mm Pitch, To Suit 6mm Wide Belts
Timing Pulleys and Timing Belts from Ondrives UK precision gear and gearbox manufacturer Timing Pulleys and Timing Belts from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Pulley Tooth2GT
Belt Width6
No. of Teeth [z]36
Dimension [Dp]22.9
Dimension [De]22.4
Dimension [Db]14
Dimension [E]18
Dimension [Df]27
Dimension [W]10.3
Dimension [A]7
Dimension [I]1.65
Dimension [L]7
Dimension [F]2.75
Dimension [G]5
Thread [d]M2
Wrench Torque (Nm)0.5
Bore Diameter [D]4
Max. Bore Diameter6
Torque Capacity Nm (0-3200 min-¹)0.574
Torque Capacity Nm (3201-5000 min-¹)0.507
Max. Rotational Frequency min-¹5000
Moment of Inertia kg•m²1.2 x 10-6
Mass (g)18
