P34-2GT-BLP-6C-5

Timing Pulleys and Timing Belts from Ondrives UK precision gear and gearbox manufacturer

P34-2GT-BLP-6C-5

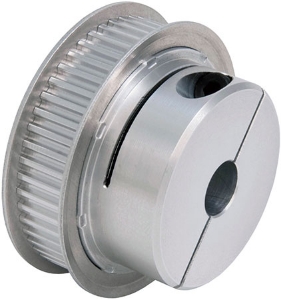

GT Synchronous Miniature Timing Pulley, 2mm Pitch, To Suit 6mm Wide Belts
Timing Pulleys and Timing Belts from Ondrives UK precision gear and gearbox manufacturer Timing Pulleys and Timing Belts from Ondrives UK precision gear and gearbox manufacturer

Product specifications

Pulley Tooth 2GT
Belt Width 6
No. of Teeth [z] 34
Dimension [Dp] 21.7
Dimension [De] 21.1
Dimension [Db] 14
Dimension [E] 18
Dimension [Df] 27
Dimension [W] 10.3
Dimension [A] 7
Dimension [I] 1.65
Dimension [L] 7
Dimension [F] 2.75
Dimension [G] 5
Thread [d] M2
Wrench Torque (Nm) 0.5
Bore Diameter [D] 5
Max. Bore Diameter 6
Torque Capacity Nm (0-3200 min-¹) 0.522
Torque Capacity Nm (3201-5000 min-¹) 0.459
Max. Rotational Frequency min-¹ 5000
Moment of Inertia kg•m² 1.1 x 10-6
Mass (g) 17
