SC30-25/25

Ondrives Precision Gears and Gearboxes Part number SC30-25/25

SC30-25/25

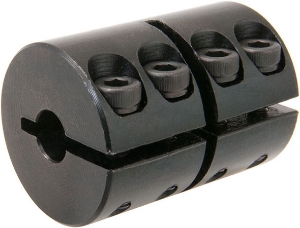

Solid Mild Steel Shaft Coupling, Set Screw Fixing
Ondrives Precision Gears and Gearboxes Part number SC30-25/25 Ondrives Precision Gears and Gearboxes Part number SC30-25/25

Product specifications

MaterialMild Steel
Coupling Configuration1 Piece
Diameter [D]70
Dimension [L]80
Bore Diameter [B]25
Max. Bore Diameter [B]43.0
Bore Diameter [b] H825
Set ScrewM8
Moment of Inertia kg•m²1.33 x 10-3

Product specifications

MaterialMild Steel
Coupling Configuration1 Piece
Diameter [D]70
Dimension [L]80
Bore Diameter [B]25
Max. Bore Diameter [B]43.0
Bore Diameter [b] H825
Set ScrewM8
Moment of Inertia kg•m²1.33 x 10-3
