SC10-8/8

Ondrives Precision Gears and Gearboxes Part number SC10-8/8

SC10-8/8

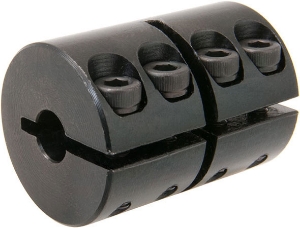

Solid Mild Steel Shaft Coupling, Set Screw Fixing
Ondrives Precision Gears and Gearboxes Part number SC10-8/8 Ondrives Precision Gears and Gearboxes Part number SC10-8/8

Product specifications

MaterialMild Steel
Coupling Configuration1 Piece
Mass (g)182
Diameter [D]30
Dimension [L]40
Bore Diameter [B]8
Max. Bore Diameter [B]13
Bore Diameter [b] H88
Set ScrewM4
Moment of Inertia kg•m²2.27 x 10-5

Product specifications

MaterialMild Steel
Coupling Configuration1 Piece
Mass (g)182
Diameter [D]30
Dimension [L]40
Bore Diameter [B]8
Max. Bore Diameter [B]13
Bore Diameter [b] H88
Set ScrewM4
Moment of Inertia kg•m²2.27 x 10-5
