CC3-5

Ondrives Precision Gears and Gearboxes Part number CC3-5

CC3-5

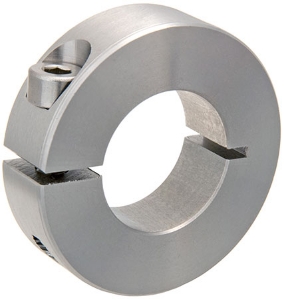

1 Piece 303 Stainless Steel Shaft Collar, Clamp Fixing
Ondrives Precision Gears and Gearboxes Part number CC3-5 Ondrives Precision Gears and Gearboxes Part number CC3-5

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Coupling Configuration1 Piece
Diameter [D]16
Dimension [L]5
Cap ScrewM3
Bore Diameter [B]5
Min. Clearance21
Mass (g)7
Moment of Inertia kg•m²1.39 x 10-7

Product specifications

MaterialAISI 303 (EN 1.4305) Stainless Steel
Coupling Configuration1 Piece
Diameter [D]16
Dimension [L]5
Cap ScrewM3
Bore Diameter [B]5
Min. Clearance21
Mass (g)7
Moment of Inertia kg•m²1.39 x 10-7
