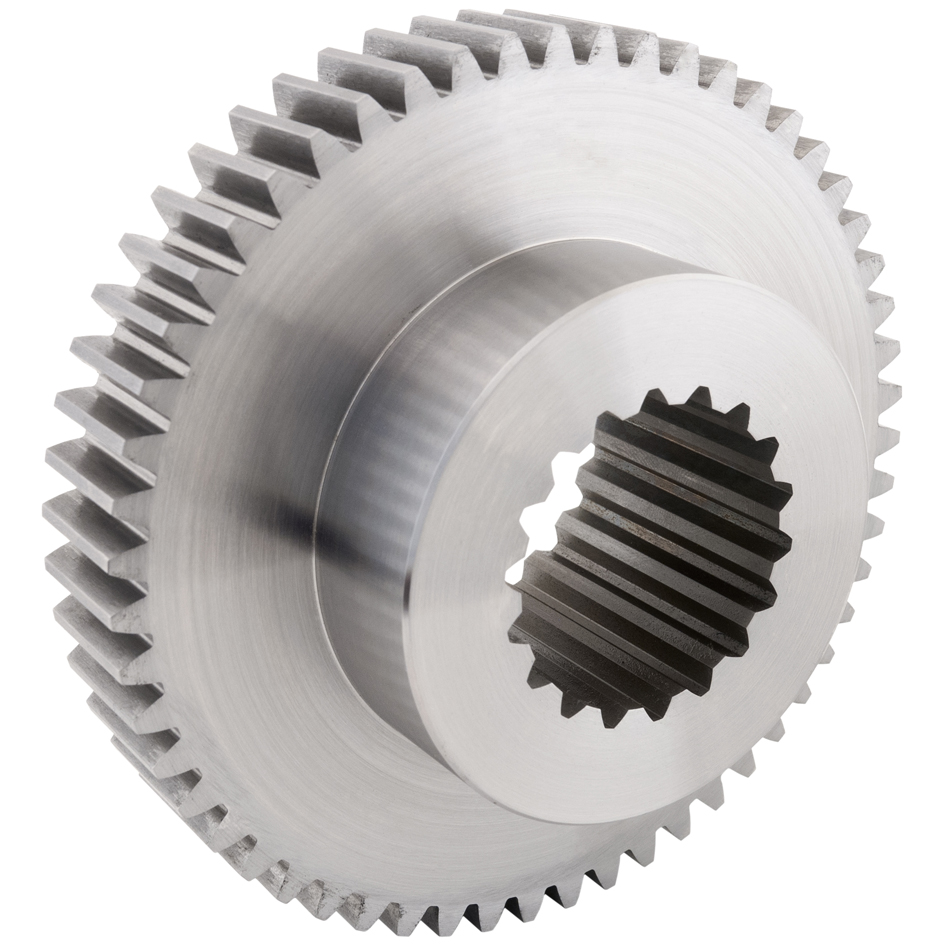

Splined Bore Spur Gears
| Sku (Part No.) | Normal Module mn | No. of Teeth [z] | Torque T₂ [Nm] n1 100 r/min | Spline Din 5480 Gears | Material |
|---|---|---|---|---|---|
| PSGS1.5-18 | 1.5 | 18 | 5.49 | N17x1.25x30x12x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-19 | 1.5 | 19 | 5.79 | N17x1.25x30x12x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-20 | 1.5 | 20 | 7.71 | N17x1.25x30x12x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-21 | 1.5 | 21 | 8.1 | N17x1.25x30x12x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-22 | 1.5 | 22 | 8.48 | N17x1.25x30x12x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-23 | 1.5 | 23 | 8.87 | N17x1.25x30x12x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-24 | 1.5 | 24 | 9.25 | N17x1.25x30x12x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-25 | 1.5 | 25 | 9.64 | N17x1.25x30x12x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-26 | 1.5 | 26 | 11.79 | N17x1.25x30x12x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-27 | 1.5 | 27 | 12.25 | N17x1.25x30x12x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-28 | 1.5 | 28 | 12.7 | N17x1.25x30x12x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-29 | 1.5 | 29 | 13.15 | N20x1.25x30x14x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-30 | 1.5 | 30 | 14.97 | N20x1.25x30x14x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-32 | 1.5 | 32 | 15.97 | N20x1.25x30x14x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-35 | 1.5 | 35 | 17.46 | N20x1.25x30x14x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-38 | 1.5 | 38 | 18.96 | N25x1.25x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-40 | 1.5 | 40 | 25.5 | N25x1.25x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-42 | 1.5 | 42 | 26.78 | N25x1.25x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-45 | 1.5 | 45 | 28.69 | N25x1.25x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-48 | 1.5 | 48 | 30.6 | N25x1.25x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-50 | 1.5 | 50 | 37.8 | N30x1.25x30x22x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-52 | 1.5 | 52 | 39.31 | N30x1.25x30x22x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-55 | 1.5 | 55 | 41.58 | N30x1.25x30x22x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-58 | 1.5 | 58 | 43.85 | N30x1.25x30x22x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-60 | 1.5 | 60 | 53.98 | N30x1.25x30x22x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-62 | 1.5 | 62 | 55.78 | N30x1.25x30x22x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-65 | 1.5 | 65 | 58.48 | N30x1.25x30x22x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-68 | 1.5 | 68 | 61.18 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-70 | 1.5 | 70 | 62.98 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-72 | 1.5 | 72 | 64.78 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-75 | 1.5 | 75 | 67.48 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-78 | 1.5 | 78 | 70.17 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-80 | 1.5 | 80 | 92.13 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-82 | 1.5 | 82 | 94.44 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-85 | 1.5 | 85 | 97.89 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-88 | 1.5 | 88 | 101.35 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-90 | 1.5 | 90 | 103.65 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-92 | 1.5 | 92 | 105.95 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-95 | 1.5 | 95 | 109.41 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-98 | 1.5 | 98 | 112.86 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS1.5-18H | 1.5 | 18 | 20.13 | N17x1.25x30x12x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-19H | 1.5 | 19 | 21.24 | N17x1.25x30x12x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-20H | 1.5 | 20 | 28.28 | N17x1.25x30x12x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-21H | 1.5 | 21 | 29.69 | N17x1.25x30x12x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-22H | 1.5 | 22 | 31.1 | N17x1.25x30x12x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-23H | 1.5 | 23 | 32.52 | N17x1.25x30x12x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-24H | 1.5 | 24 | 33.93 | N17x1.25x30x12x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-25H | 1.5 | 25 | 35.34 | N17x1.25x30x12x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-26H | 1.5 | 26 | 38.88 | N17x1.25x30x12x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-27H | 1.5 | 27 | 40.38 | N17x1.25x30x12x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-28H | 1.5 | 28 | 41.87 | N17x1.25x30x12x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-29H | 1.5 | 29 | 43.37 | N20x1.25x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-30H | 1.5 | 30 | 44.58 | N20x1.25x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-32H | 1.5 | 32 | 47.55 | N20x1.25x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-35H | 1.5 | 35 | 52.01 | N20x1.25x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-38H | 1.5 | 38 | 56.47 | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-40H | 1.5 | 40 | 66.12 | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-42H | 1.5 | 42 | 69.42 | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-45H | 1.5 | 45 | 74.38 | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-48H | 1.5 | 48 | 79.34 | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-50H | 1.5 | 50 | 89.68 | N30x1.25x30x22x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-52H | 1.5 | 52 | 93.27 | N30x1.25x30x22x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-55H | 1.5 | 55 | 98.65 | N30x1.25x30x22x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-58H | 1.5 | 58 | 104.03 | N30x1.25x30x22x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-60H | 1.5 | 60 | 112.05 | N30x1.25x30x22x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-62H | 1.5 | 62 | 115.79 | N30x1.25x30x22x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-65H | 1.5 | 65 | 121.39 | N30x1.25x30x22x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-68H | 1.5 | 68 | 127 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-70H | 1.5 | 70 | 130.73 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-72H | 1.5 | 72 | 134.47 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-75H | 1.5 | 75 | 140.07 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-78H | 1.5 | 78 | 145.67 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-80H | 1.5 | 80 | 156.66 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-82H | 1.5 | 82 | 160.57 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-85H | 1.5 | 85 | 166.45 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-88H | 1.5 | 88 | 172.32 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-90H | 1.5 | 90 | 176.24 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-92H | 1.5 | 92 | 180.16 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-95H | 1.5 | 95 | 186.03 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS1.5-98H | 1.5 | 98 | 191.9 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-18 | 2 | 18 | 12.28 | N17x1.25x30x12x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-19 | 2 | 19 | 12.97 | N17x1.25x30x12x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-20 | 2 | 20 | 17.26 | N17x1.25x30x12x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-21 | 2 | 21 | 18.12 | N20x1.25x30x14x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-22 | 2 | 22 | 18.98 | N20x1.25x30x14x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-23 | 2 | 23 | 19.85 | N20x1.25x30x14x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-24 | 2 | 24 | 20.71 | N20x1.25x30x14x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-25 | 2 | 25 | 21.57 | N20x1.25x30x14x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-26 | 2 | 26 | 26.39 | N20x1.25x30x14x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-27 | 2 | 27 | 27.41 | N20x1.25x30x14x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-28 | 2 | 28 | 28.42 | N20x1.25x30x14x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-29 | 2 | 29 | 29.44 | N25x1.25x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-30 | 2 | 30 | 33.5 | N25x1.25x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-32 | 2 | 32 | 35.73 | N25x1.25x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-35 | 2 | 35 | 39.08 | N25x1.25x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-38 | 2 | 38 | 42.43 | N25x1.25x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-40 | 2 | 40 | 57.07 | N30x1.25x30x22x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-42 | 2 | 42 | 59.93 | N30x1.25x30x22x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-45 | 2 | 45 | 64.21 | N30x1.25x30x22x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-48 | 2 | 48 | 68.49 | N30x1.25x30x22x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-50 | 2 | 50 | 84.59 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-52 | 2 | 52 | 87.98 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-55 | 2 | 55 | 93.05 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-58 | 2 | 58 | 98.13 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-60 | 2 | 60 | 120.8 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-62 | 2 | 62 | 124.83 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-65 | 2 | 65 | 130.87 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-68 | 2 | 68 | 136.91 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-70 | 2 | 70 | 140.93 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-72 | 2 | 72 | 144.96 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.0-18H | 2 | 18 | 45.04 | N17x1.25x30x12x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-19H | 2 | 19 | 47.54 | N17x1.25x30x12x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-20H | 2 | 20 | 63.28 | N17x1.25x30x12x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-21H | 2 | 21 | 66.44 | N20x1.25x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-22H | 2 | 22 | 69.6 | N20x1.25x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-23H | 2 | 23 | 72.77 | N20x1.25x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-24H | 2 | 24 | 75.93 | N20x1.25x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-25H | 2 | 25 | 79.09 | N20x1.25x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-26H | 2 | 26 | 92.17 | N20x1.25x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-27H | 2 | 27 | 95.71 | N20x1.25x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-28H | 2 | 28 | 99.26 | N20x1.25x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-29H | 2 | 29 | 102.8 | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-30H | 2 | 30 | 105.67 | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-32H | 2 | 32 | 112.71 | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-35H | 2 | 35 | 123.28 | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-38H | 2 | 38 | 133.85 | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-40H | 2 | 40 | 57.07 | N30x1.25x30x22x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-42H | 2 | 42 | 59.93 | N30x1.25x30x22x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-45H | 2 | 45 | 176.31 | N30x1.25x30x22x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-48H | 2 | 48 | 188.06 | N30x1.25x30x22x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-50H | 2 | 50 | 212.58 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-52H | 2 | 52 | 221.08 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-55H | 2 | 55 | 93.05 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-58H | 2 | 58 | 246.59 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-60H | 2 | 60 | 265.61 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-62H | 2 | 62 | 274.46 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-65H | 2 | 65 | 287.75 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-68H | 2 | 68 | 301.03 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-70H | 2 | 70 | 309.88 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.0-72H | 2 | 72 | 318.73 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-18 | 2.5 | 18 | 22.94 | N17x1.25x30x12x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-19 | 2.5 | 19 | 24.22 | N17x1.25x30x12x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-20 | 2.5 | 20 | 32.23 | N17x1.25x30x12x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-21 | 2.5 | 21 | 33.85 | N17x1.25x30x12x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-22 | 2.5 | 22 | 35.46 | N17x1.25x30x12x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-23 | 2.5 | 23 | 37.07 | N25x1.25x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-24 | 2.5 | 24 | 38.68 | N25x1.25x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-25 | 2.5 | 25 | 40.29 | N25x1.25x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-26 | 2.5 | 26 | 49.3 | N25x1.25x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-27 | 2.5 | 27 | 51.2 | N25x1.25x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-28 | 2.5 | 28 | 53.09 | N25x1.25x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-29 | 2.5 | 29 | 54.99 | N35x2.00x30x16x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-30 | 2.5 | 30 | 62.57 | N35x2.00x30x16x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-32 | 2.5 | 32 | 66.74 | N35x2.00x30x16x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-35 | 2.5 | 35 | 73 | N35x2.00x30x16x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-38 | 2.5 | 38 | 79.26 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-40 | 2.5 | 40 | 106.6 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-42 | 2.5 | 42 | 111.93 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-45 | 2.5 | 45 | 119.93 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-48 | 2.5 | 48 | 127.92 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-50 | 2.5 | 50 | 158.01 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-52 | 2.5 | 52 | 164.33 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-55 | 2.5 | 55 | 173.81 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-58 | 2.5 | 58 | 183.29 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS2.5-18H | 2.5 | 18 | 84.12 | N17x1.25x30x12x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-19H | 2.5 | 19 | 88.8 | N17x1.25x30x12x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-20H | 2.5 | 20 | 118.19 | N17x1.25x30x12x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-21H | 2.5 | 21 | 124.1 | N17x1.25x30x12x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-22H | 2.5 | 22 | 130.01 | N17x1.25x30x12x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-23H | 2.5 | 23 | 135.92 | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-24H | 2.5 | 24 | 141.83 | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-25H | 2.5 | 25 | 147.74 | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-26H | 2.5 | 26 | 49.3 | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-27H | 2.5 | 27 | 186.94 | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-28H | 2.5 | 28 | 193.86 | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-29H | 2.5 | 29 | 200.78 | N35x2.00x30x16x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-30H | 2.5 | 30 | 206.38 | N35x2.00x30x16x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-32H | 2.5 | 32 | 220.14 | N35x2.00x30x16x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-35H | 2.5 | 35 | 240.78 | N35x2.00x30x16x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-38H | 2.5 | 38 | 261.42 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-40H | 2.5 | 40 | 306.09 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-42H | 2.5 | 42 | 321.4 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-45H | 2.5 | 45 | 344.36 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-48H | 2.5 | 48 | 367.31 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-50H | 2.5 | 50 | 415.19 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-52H | 2.5 | 52 | 431.8 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-55H | 2.5 | 55 | 456.71 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS2.5-58H | 2.5 | 58 | 481.62 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS3.0-18 | 3 | 18 | 38.23 | N25x1.25x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS3.0-19 | 3 | 19 | 40.35 | N25x1.25x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS3.0-20 | 3 | 20 | 53.71 | N25x1.25x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS3.0-21 | 3 | 21 | 56.39 | N32x2.00x30x14x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS3.0-22 | 3 | 22 | 59.08 | N32x2.00x30x14x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS3.0-23 | 3 | 23 | 61.76 | N32x2.00x30x14x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS3.0-24 | 3 | 24 | 64.45 | N32x2.00x30x14x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS3.0-25 | 3 | 25 | 67.13 | N32x2.00x30x14x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS3.0-26 | 3 | 26 | 82.14 | N32x2.00x30x14x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS3.0-27 | 3 | 27 | 85.3 | N32x2.00x30x14x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS3.0-28 | 3 | 28 | 88.46 | N32x2.00x30x14x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS3.0-29 | 3 | 29 | 91.62 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS3.0-30 | 3 | 30 | 104.25 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS3.0-32 | 3 | 32 | 111.2 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS3.0-35 | 3 | 35 | 121.63 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS3.0-38 | 3 | 38 | 132.05 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS3.0-40 | 3 | 40 | 177.62 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS3.0-42 | 3 | 42 | 186.5 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS3.0-45 | 3 | 45 | 199.82 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS3.0-48 | 3 | 48 | 213.14 | N40x2.00x30x18x9H | 817M40T, AISI 4340, EN 1.6582, 34CrNiMo6 Steel 28Hrc |
| PSGS3.0-18H | 3 | 18 | 140.16 | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS3.0-19H | 3 | 19 | 147.95 | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS3.0-20H | 3 | 20 | 196.92 | N25x1.25x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS3.0-21H | 3 | 21 | 206.77 | N32x2.00x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS3.0-22H | 3 | 22 | 216.61 | N32x2.00x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS3.0-23H | 3 | 23 | 226.46 | N32x2.00x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS3.0-24H | 3 | 24 | 236.31 | N32x2.00x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS3.0-25H | 3 | 25 | 246.15 | N32x2.00x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS3.0-26H | 3 | 26 | 301.17 | N32x2.00x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS3.0-27H | 3 | 27 | 312.76 | N32x2.00x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS3.0-28H | 3 | 28 | 324.34 | N32x2.00x30x14x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS3.0-29H | 3 | 29 | 335.93 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS3.0-30H | 3 | 30 | 356.63 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS3.0-32H | 3 | 32 | 380.4 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS3.0-35H | 3 | 35 | 416.07 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS3.0-38H | 3 | 38 | 451.73 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS3.0-40H | 3 | 40 | 528.93 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS3.0-42H | 3 | 42 | 555.38 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS3.0-45H | 3 | 45 | 595.05 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
| PSGS3.0-48H | 3 | 48 | 634.72 | N40x2.00x30x18x9H | 805M20, AISI 8620, EN 1.6523, 20NiCrMo2-2 Steel Case Hard 57Hrc |
